Single Probe Solderless Connector

Description

Function：

1：Provide solderless connections during in-circuit programming (ICP) testing.

2：Connect the BOOT point when open DME shell to read ISN code.

Advantage：

1：Excellent versatility: compared with the traditional ECU worktable, it is compact in size, easy to carry, has multiple fixing modes, more suitable for outdoor or indoor work.

2：Simple and high efficiency operation: the connection can be simply completed by pulling and pressing.

3：Modular design: free switch among single point connection, multi – point connection and combination connection.

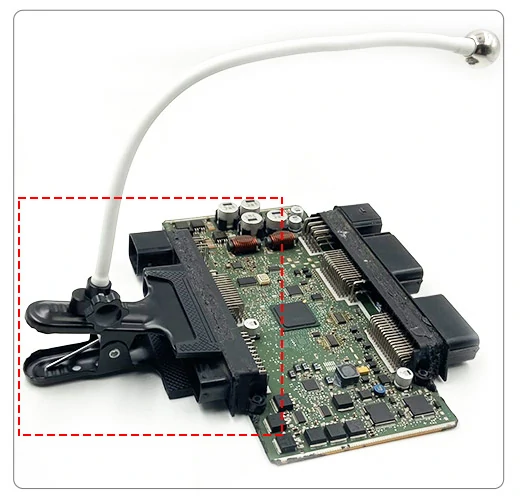

▼ Method 2: Clamp the flat without components area of ECU PCB board edge.

▼ Method 3: Clamp the ECU socket.

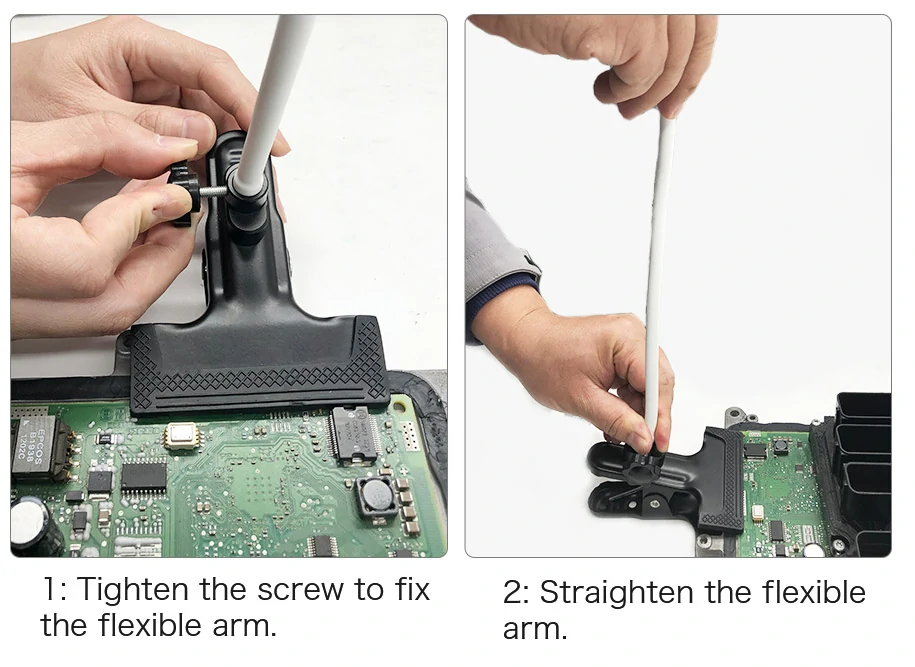

▼ Step2: Fix and straighten the flexible arm.

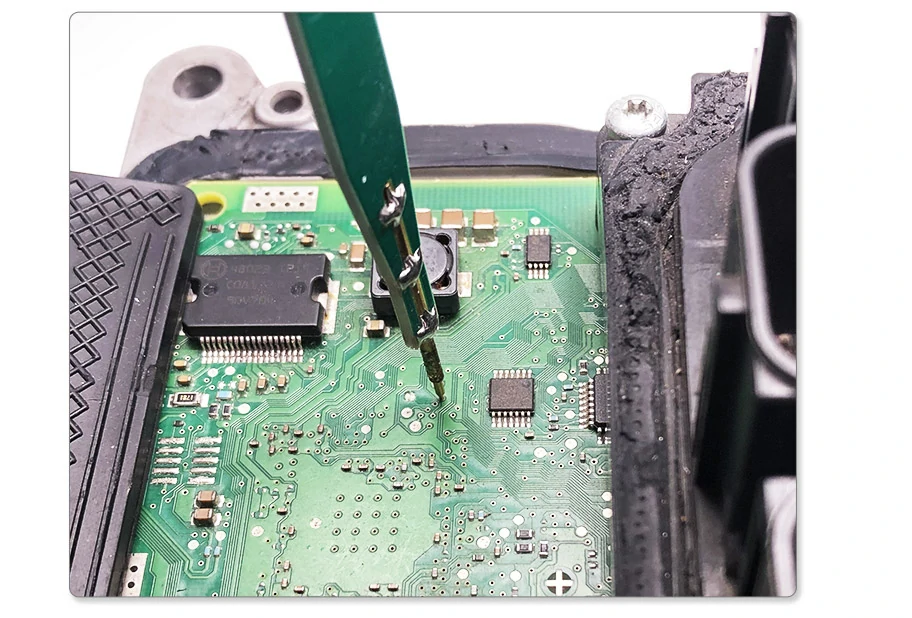

▼ Step3: Align and prick the probe at the test point. Use the PCB probe board to align the through- hole test point or solder pad test point.

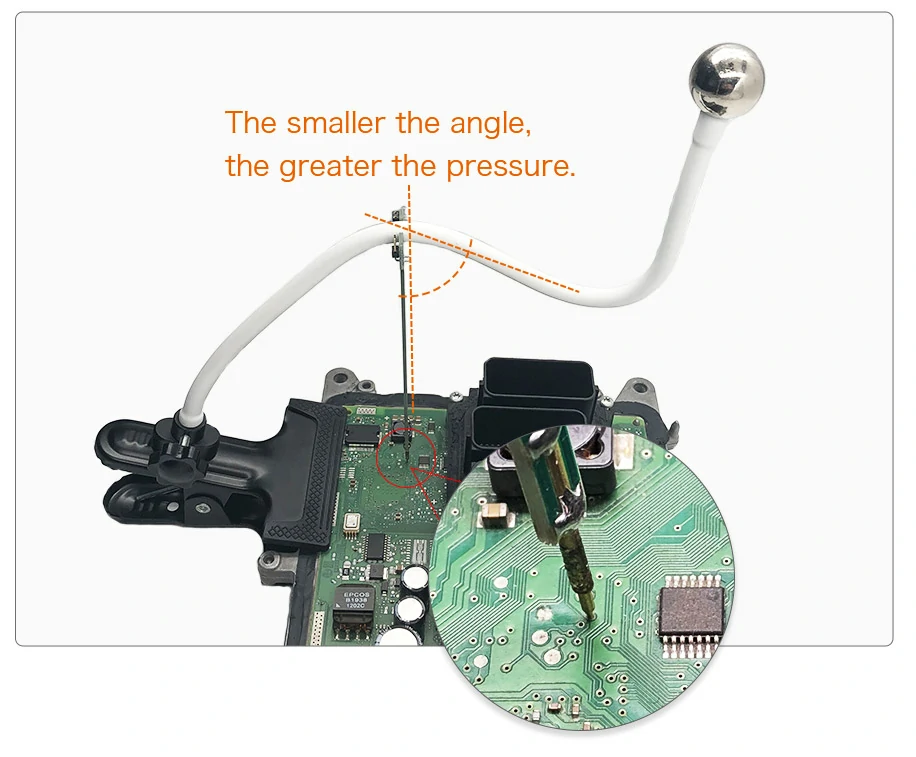

▼ Step4: Press the PCB probe board with flexible arm. Note that the angle between the flexible arm and the PCB probe board should be kept at 90°.

▼ Step5: Check the contact point and the probe compression. Adjust the inclination of flexible arm according to the length of the probe compression.

Connection diagram：

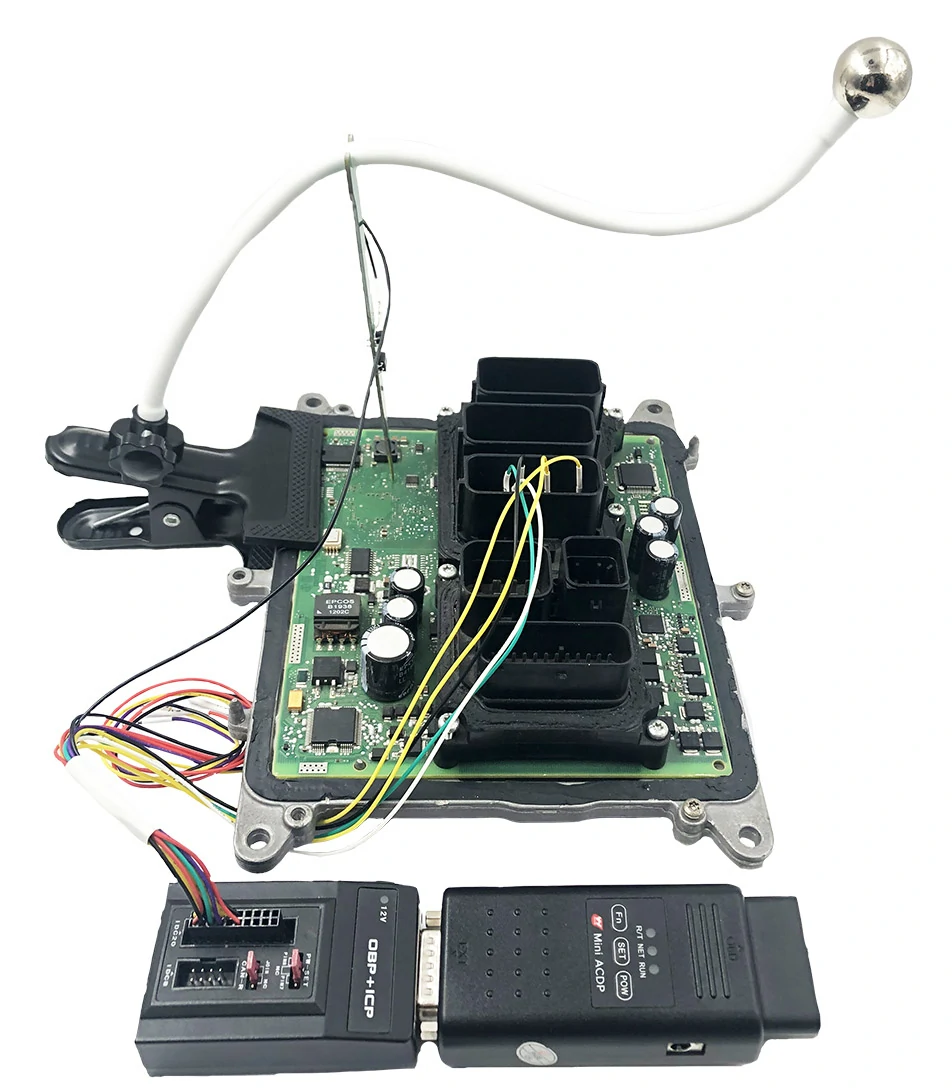

▼ N20/N13 BOOT point method

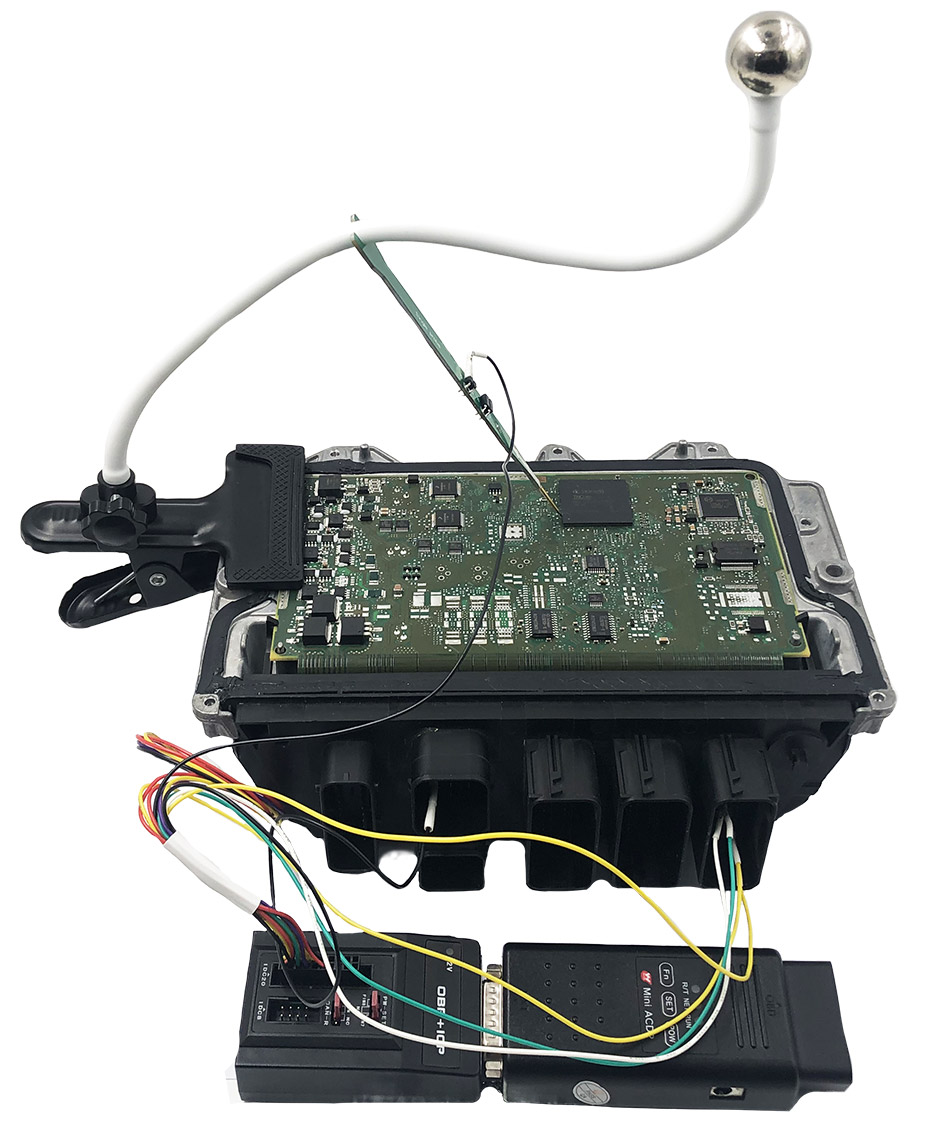

▼  B38 BOOT point method

Configuration List:

Item NO	Adapters/Parts	Pictures	Adapters/Parts functions	Quantity
1	Fixing clip of single flexible arm		Applicable to fix the solderless connector.	1
2	PCB probe board		Applicable to connect the flexible arm and probe.	1
3	flexible arm		Applicable to connect the fixing clip of flexible arm and metal ball.	1
4	Metal ball		Applicable to connect the flexible arm.	1
5	Probe pack		Applicable to connect different types of test point.	3
