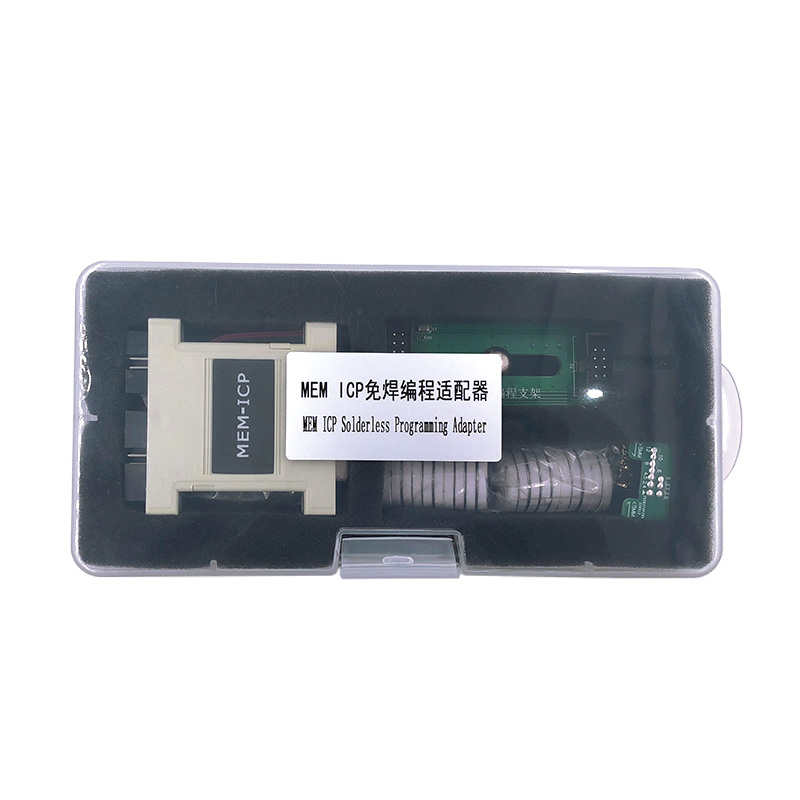

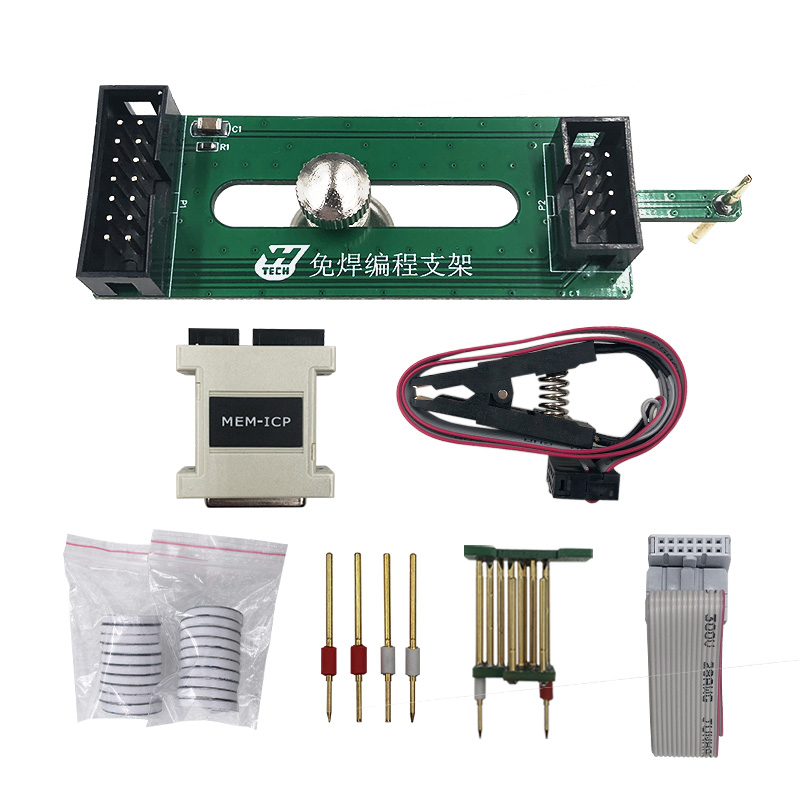

MEM-ICP adapter

Description

Function：

Used with Digimaster III. Read and write standard 8-pin memory chip data without removing the chip.

Features：

✔ Automatic intelligent Pin detection

✔ Crystal vibration interference detection

✔ Read and write data safe and reliable

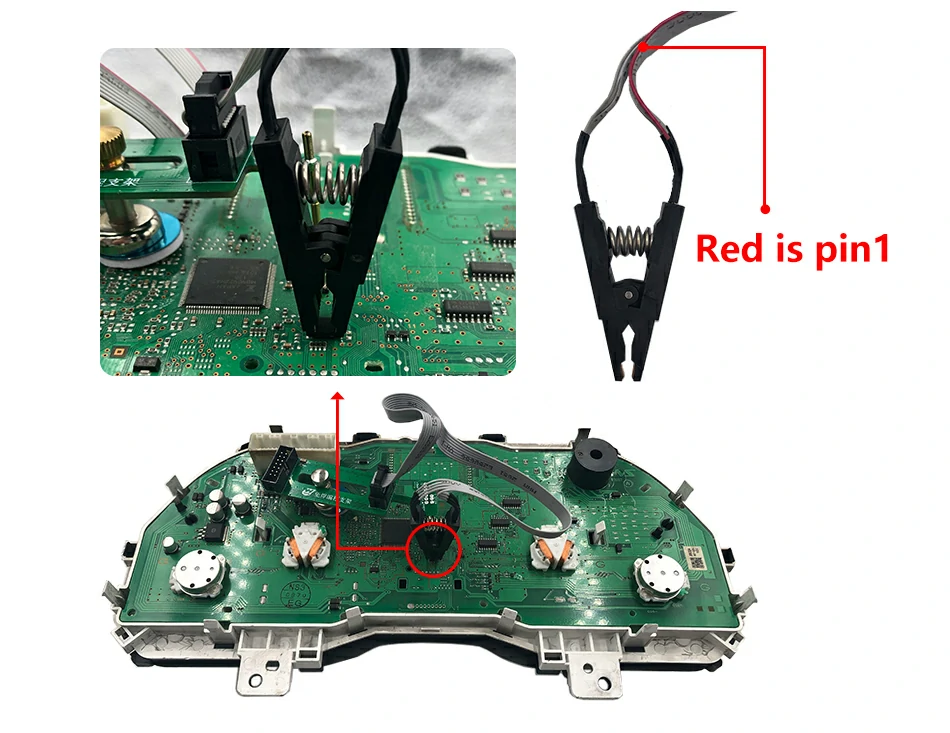

Connection diagram：

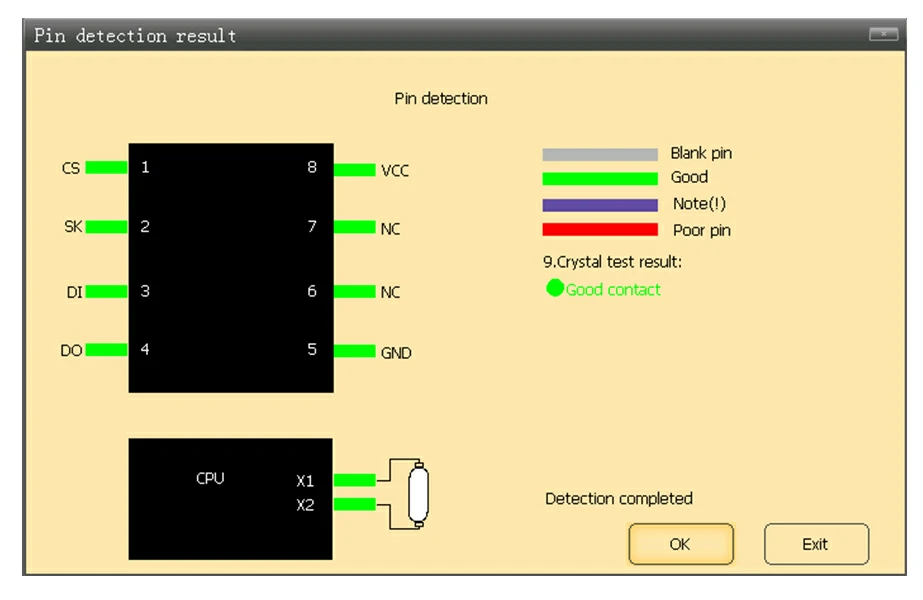

Pin detection result：

Connection steps：

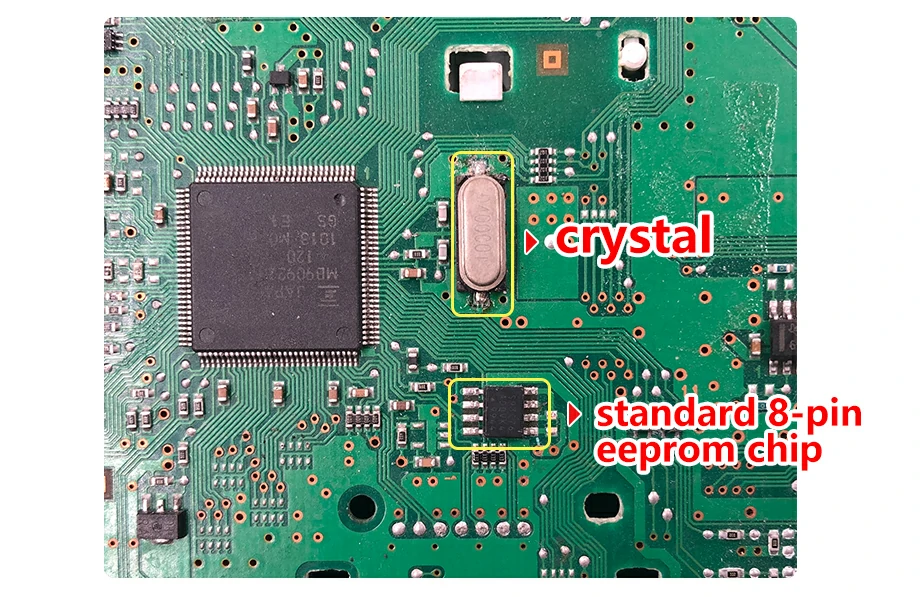

▼ 1： Confirm the location of the standard 8-pin eeprom chip and crystal.

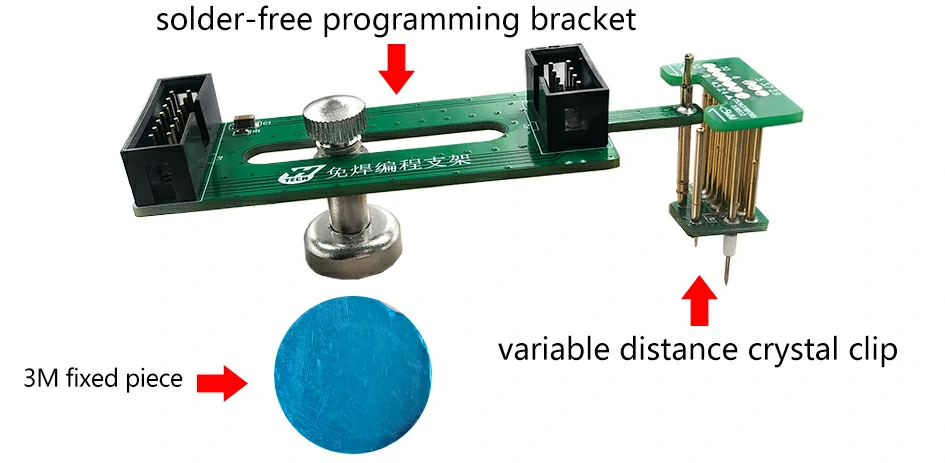

▼ 2：Introduction of solder-free programming bracket and variable distance crystal clip

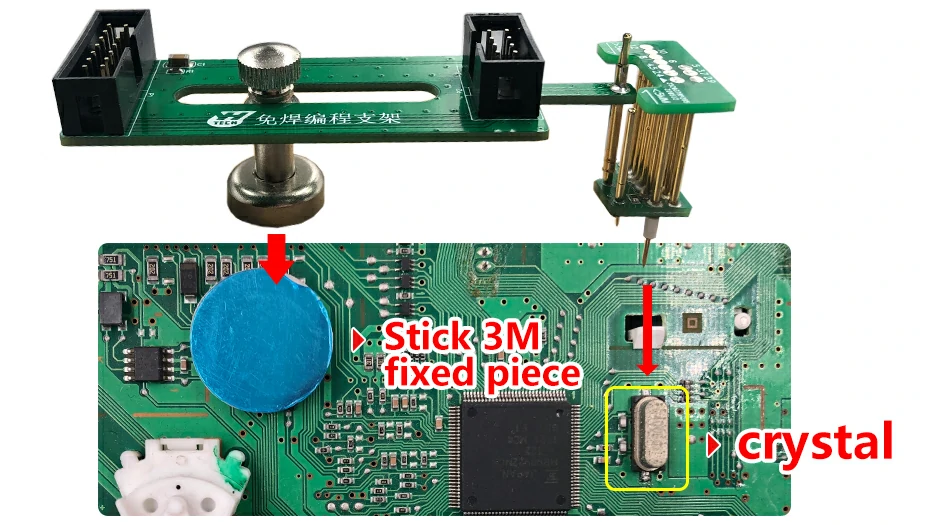

▼ 3：According to the crystal position and the length of the bracket, find the appropriate location to paste 3M fixed piece

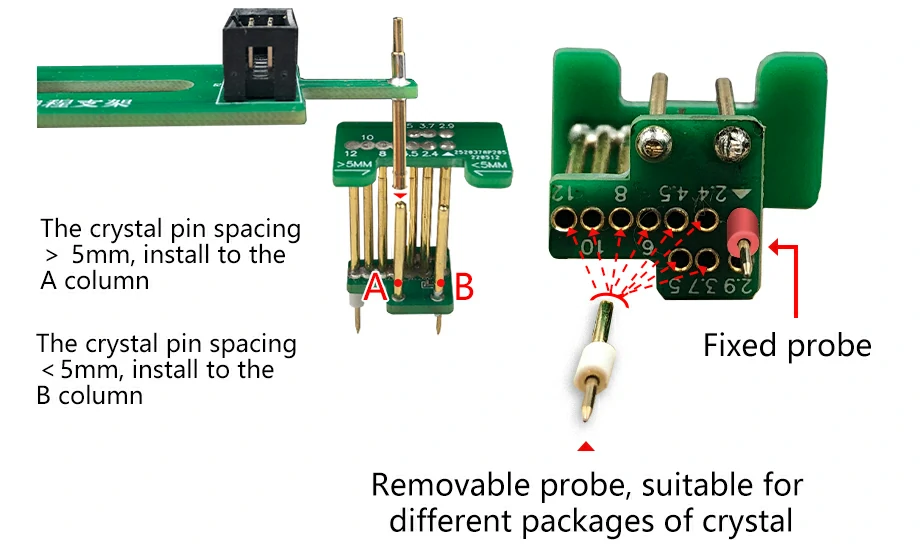

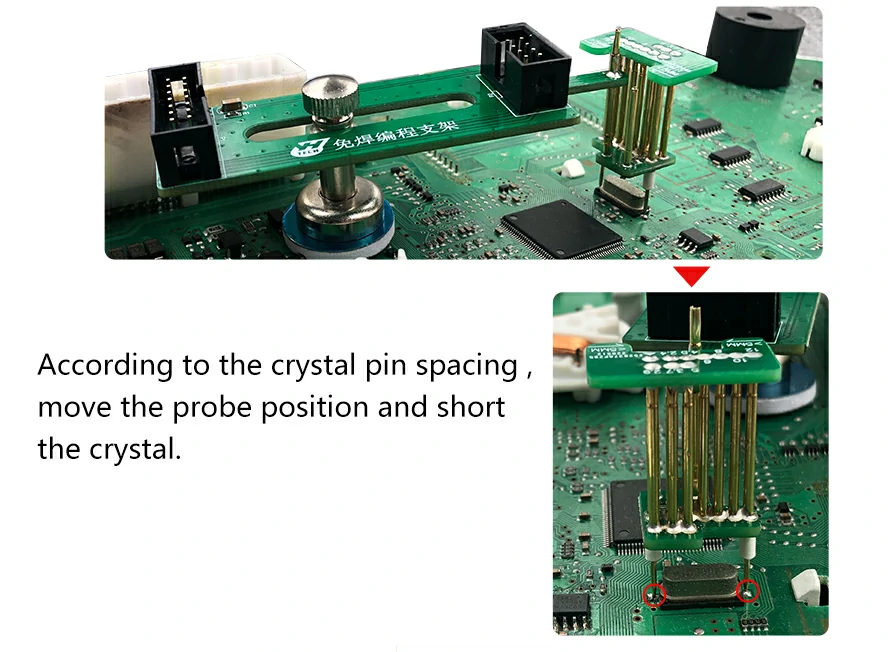

▼ 4：Variable distance crystal clip operation guide

▼ 5：Install the solder-free programming bracket and variable distance crystal clip

▼ 6：Install the 8-pin eeprom chip clip

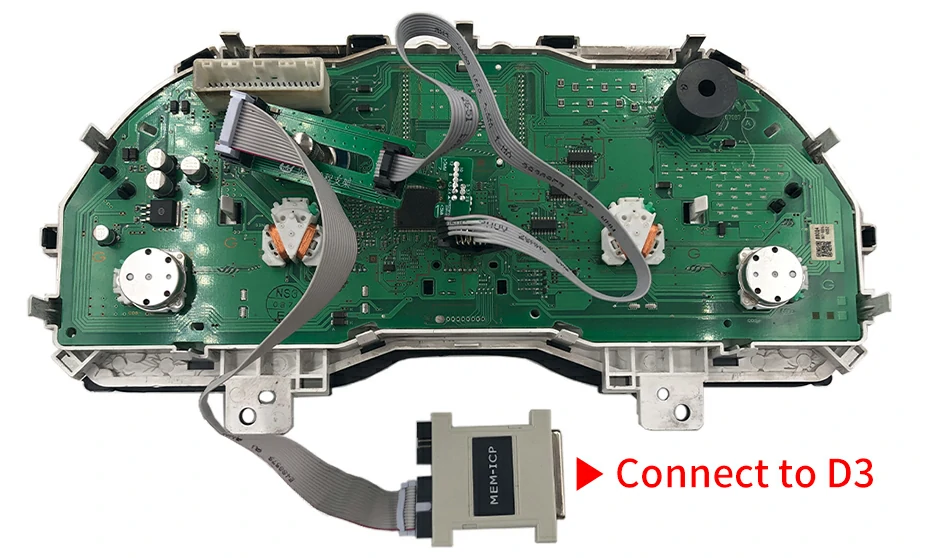

▼ 7：Connect MEM-ICP adapter
