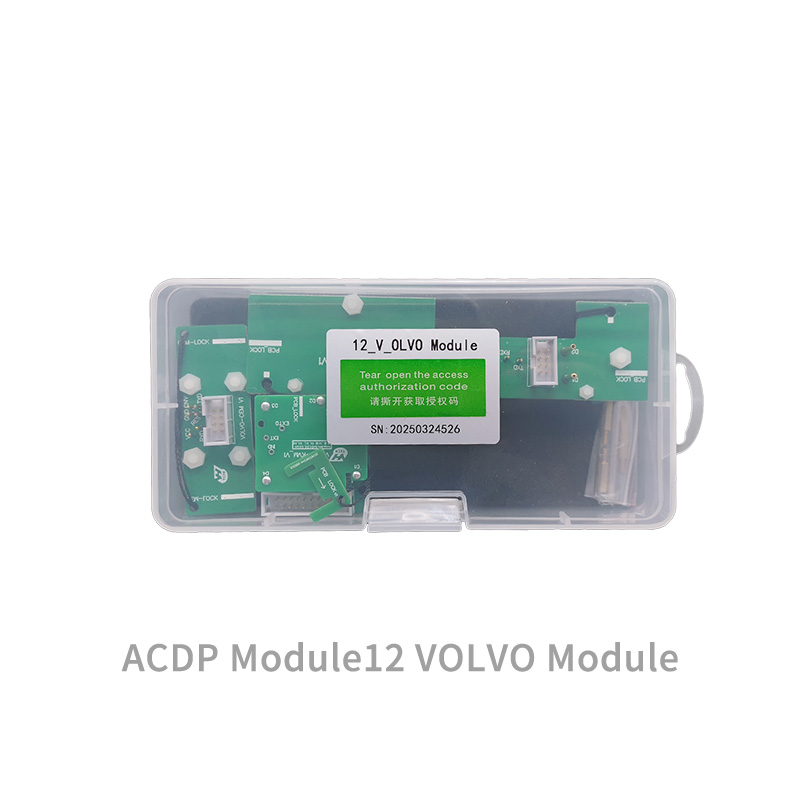

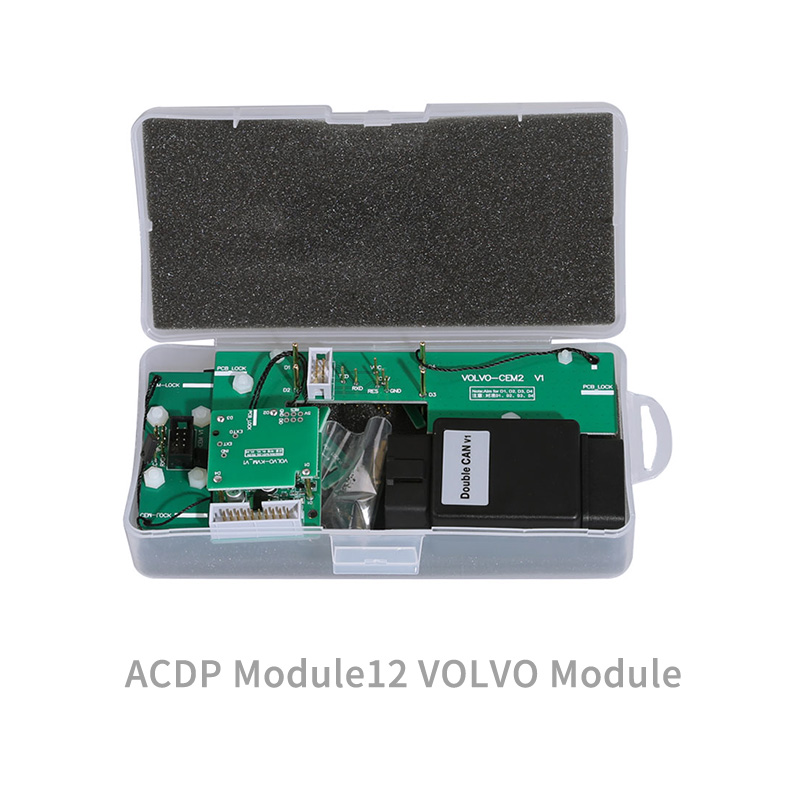

ACDP Module12 VOLVO Module

Description

Module Function：

Support adding keys and all-key-lost for Volvo semi-smart keys (OBD and ICP) and smart key (ICP).

Module Feature:

1: Free of disassembly, Solderless,No need to remove components, No need to cut the line,No risk of damage to the computer board.
2: Set anti-theft data reading and writing, anti-theft data calculation, key programming in one.
3: The interface board replaces the welding wire, the pin connect with intelligent detection, and the data reading and writing is safe and reliable.
4: With the key unlock function, No longer afraid of loss caused by key be locked.

Overall connection diagram:

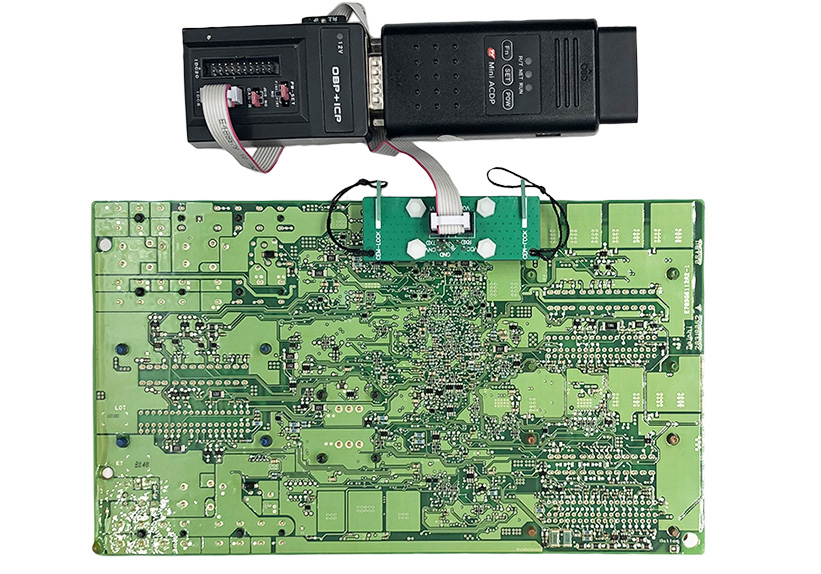

Volvo CEM type 1 ▼

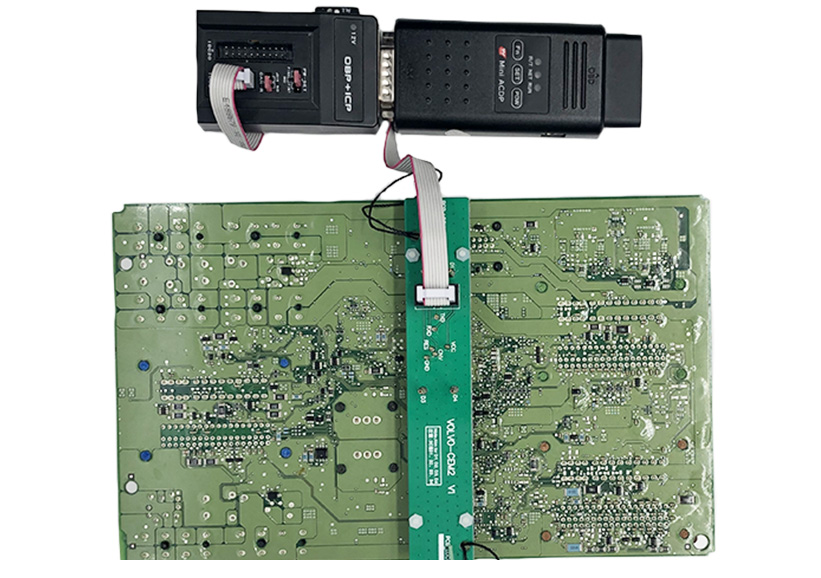

Volvo CEM type 2 ▼

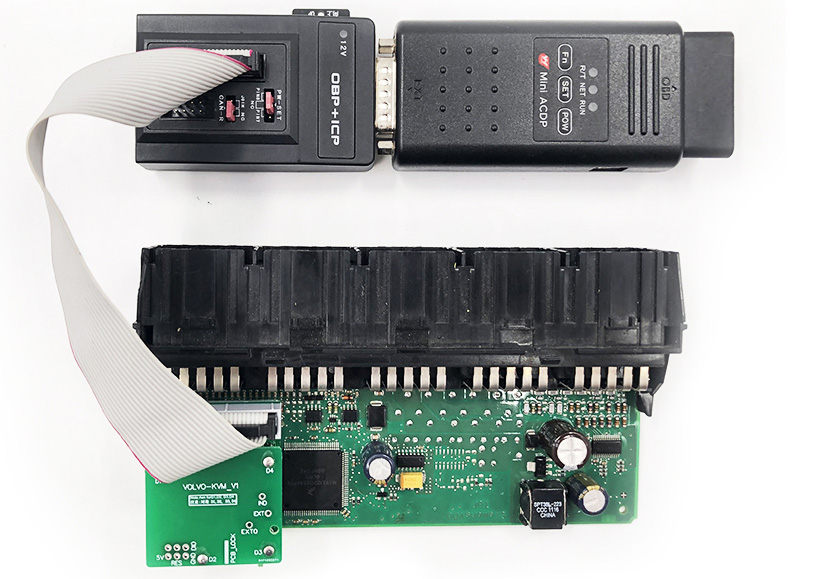

Volvo KVM ▼

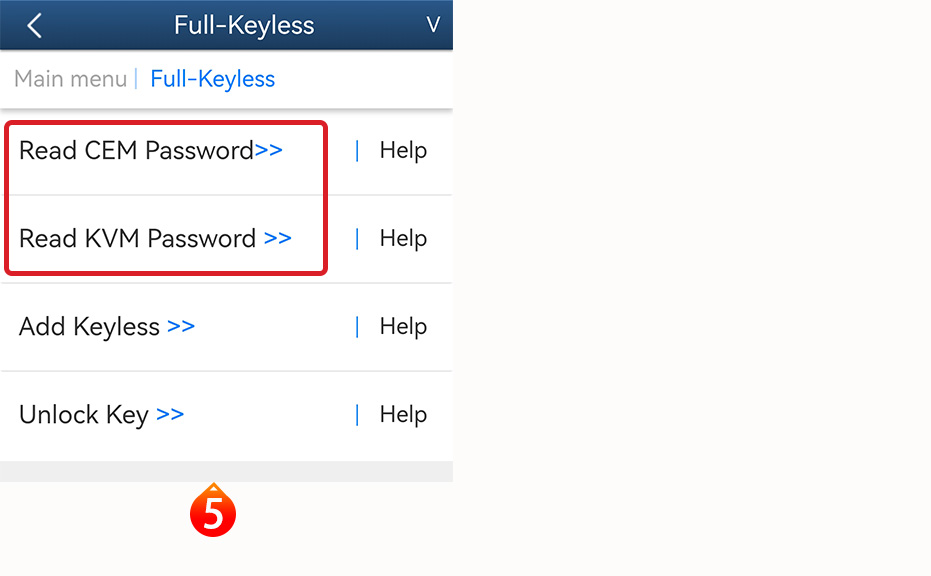

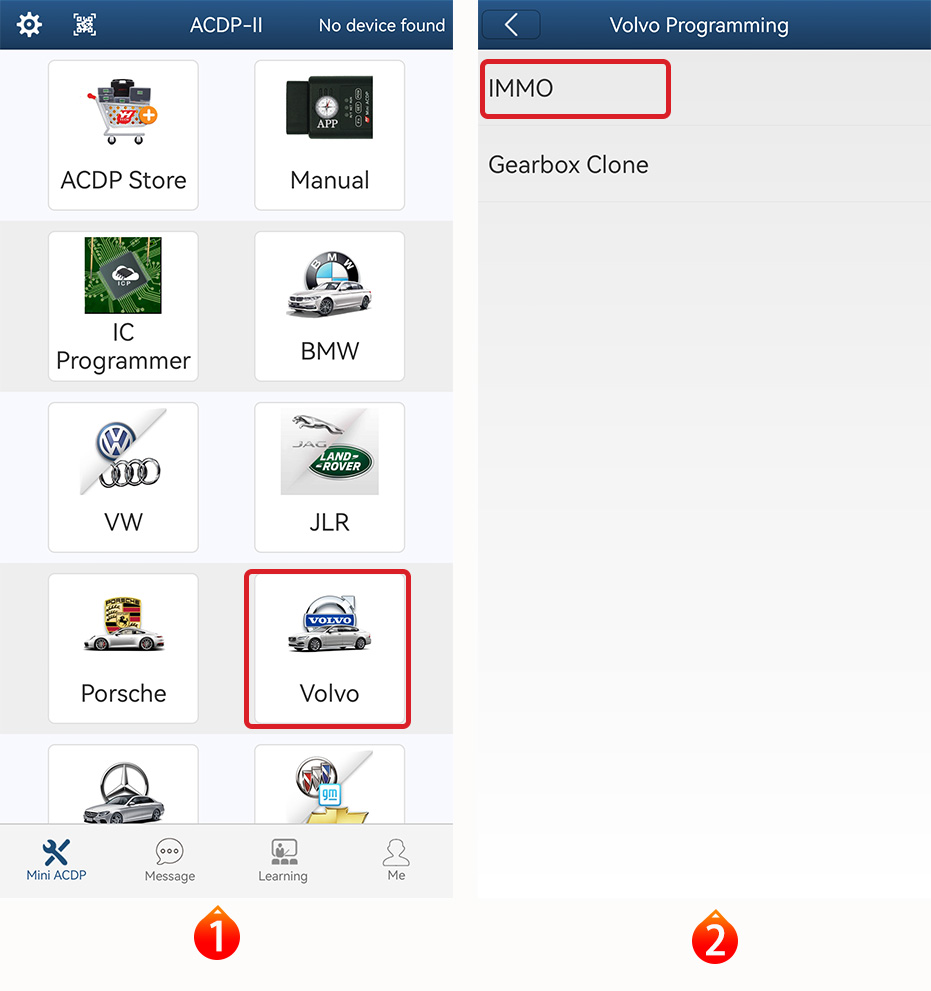

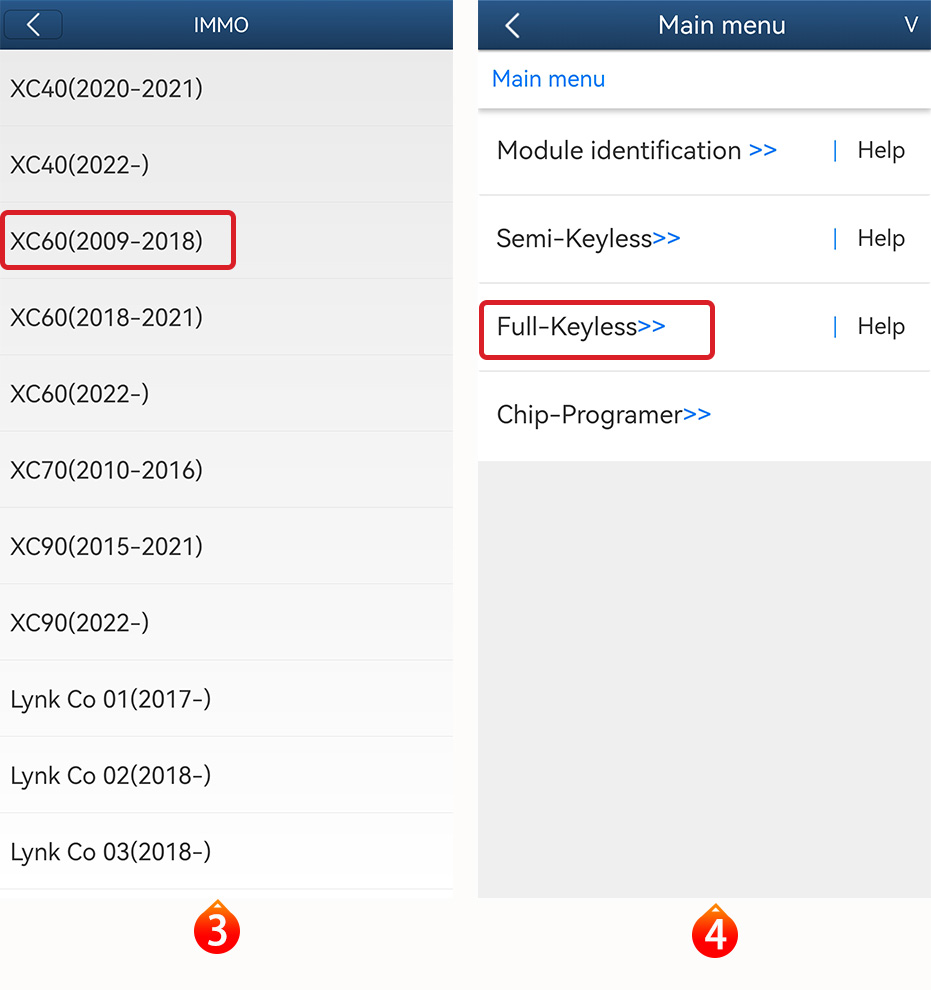

APP operation interface：

Configuration List:

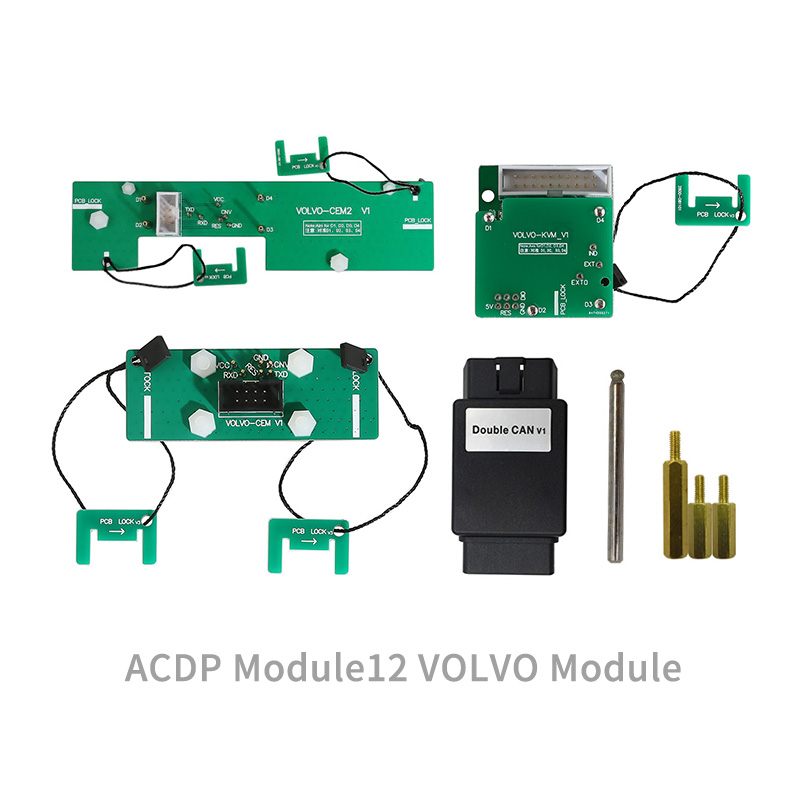

ACDP Configuration List (Module 12 VOLVO Module)

Item NO	Adapters/Parts	Pictures	Adapters/Parts functions	Quantity

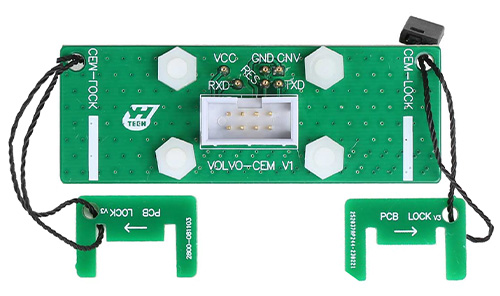

1	VOLVO CEM V1 Interface board		Applicable to connect VOLVO CEM module and read password.	1

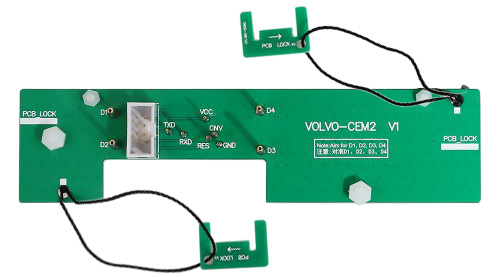

2	VOLVO CEM2 V1 Interface board		Applicable to connect VOLVO CEM module and read password.	1

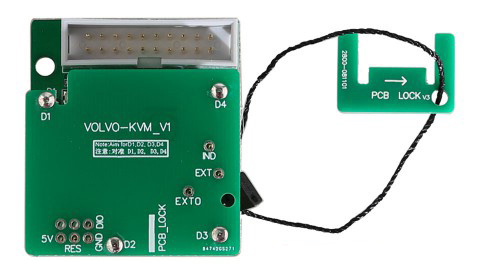

3	VOLVO KVM V1 Interface board		Applicable to connect VOLVO KVM module and read password.	1
4	CAN adapter		Applicable to connect vehicle OBD and ACDP	1
5	VOLVO Copperpillar Package(M2.5*12+6mm)x2 (M2.5*20+6mm)x1		Applicable to fix OLVO interface board.	3
6	Test Points cleaning probes		Applicable to clean Test Points.	1
