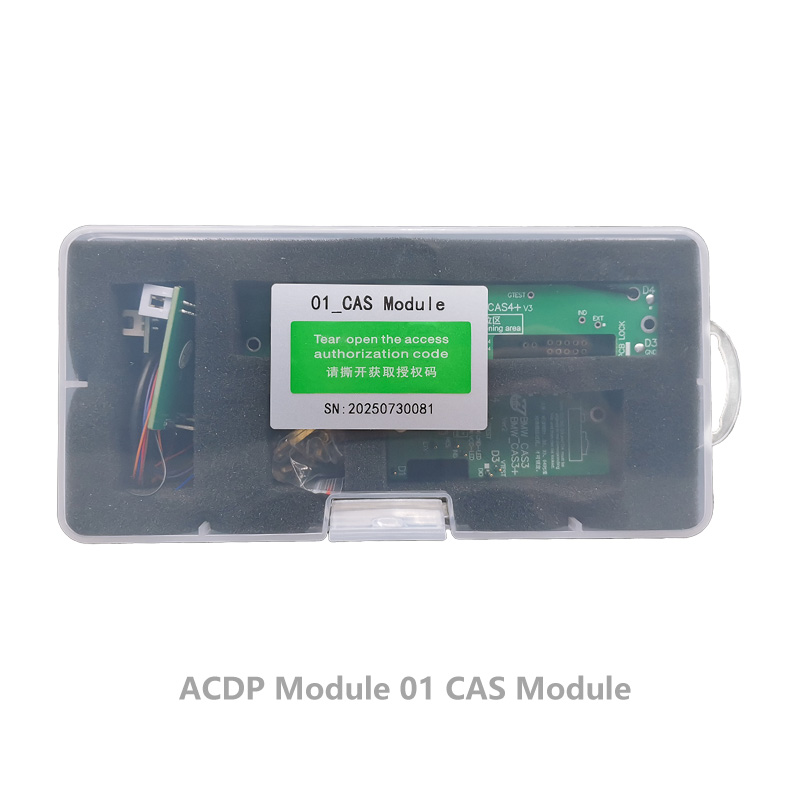

ACDP Module 01 CAS Module

Description

Module functions：

1:Support CAS1-CAS4+ IMMO key programming and mileage reset through OBD mode.
2:Support CAS3+/3++,CAS4/4+key programming and mileage reset by ICP. Data reading and writing without lifting the pin. No removing anycomponents. intelligent detection.
3: Support CAS1-CAS4+ data restore. lt can modify vehicle frequency, VIN, ISN code, or replace CAS module by modifying EE data.
4: Support OBD restore CAS3/CAS3+/CAS3+ problem caused by downgrade.
5: Support CAS1-CAS4+ Read/Write eeprom and Flash data.

Module Feature：

1:Support CAS4/CAS4+ IMMO key programming and mileage reset through OBD mode.
2:Support 9S12DXP512/9S12XEP100.
3:No need to downgrade CAS version.
4:Much safer and More efficient! Operation Time reduced from dozens ofminutes to few minutes.

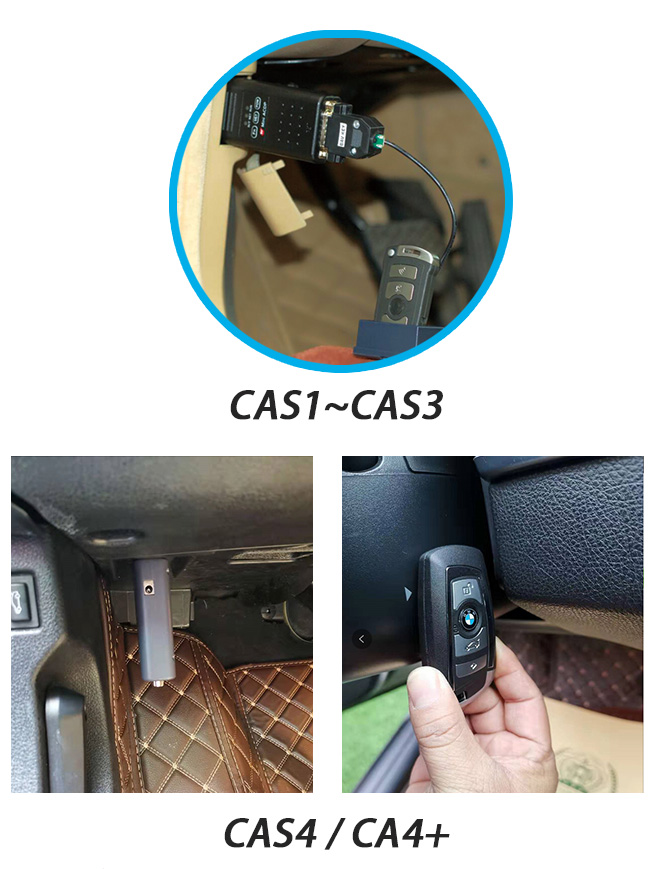

Connection diagram:

OBD ▼

ICP ▼

CAS4/4+ OBD APP Screen ▼

ICP APP Screen ▼

The comparison between ACDP and other devices for reading/writing CAS4

The other devices to use the traditional way—soldering to read/write data

1. Cutting lines

Cutting these two lines on PCB as marked, and soldering them back after reading/writing data is completed. Please note the risk of cutting lines because it may cause the module damage.

2. Removing components

Removing these 4 components as marked, and soldering them back after reading/writing data is completed. It is such a long time and complicated operation.

3.Lifting pins

Lifting the chip pins for wiring, and soldering them back after reading/writing data is completed. But it is full of risk since the chip pins are easy to break when lifting.

disadvantages：

1. Requiring soldering, which with complicated and long time operation.
2. Requiring cutting lines, lifting pins or removing components, which with the risk of module damage.
3. Manual soldering is risky and unreliable. Any faulty solder may cause the data lost.

ACDP reading/writing data by ICP.

advantages：

1. Interface board replaces the soldering to make the operation simple and efficient.
2. No cutting lines, no lifting pins, no removing components and no soldering.
3. Pin intelligent detection to ensure data reading/writing safe and reliable.

Configuration List:

ACDP Configuration List (Module 1 BMW CAS Module) ▼

Item NO	Adapters/Parts	Pictures	Adapters/Parts functions	Quantity
1	BDM01_V2 adapter		Applicable to decrypt BMW CAS EEPROM.	1
2	BDM-ICP cable		Applicable to read/write data by ICP with BDMO1 adapter.	1

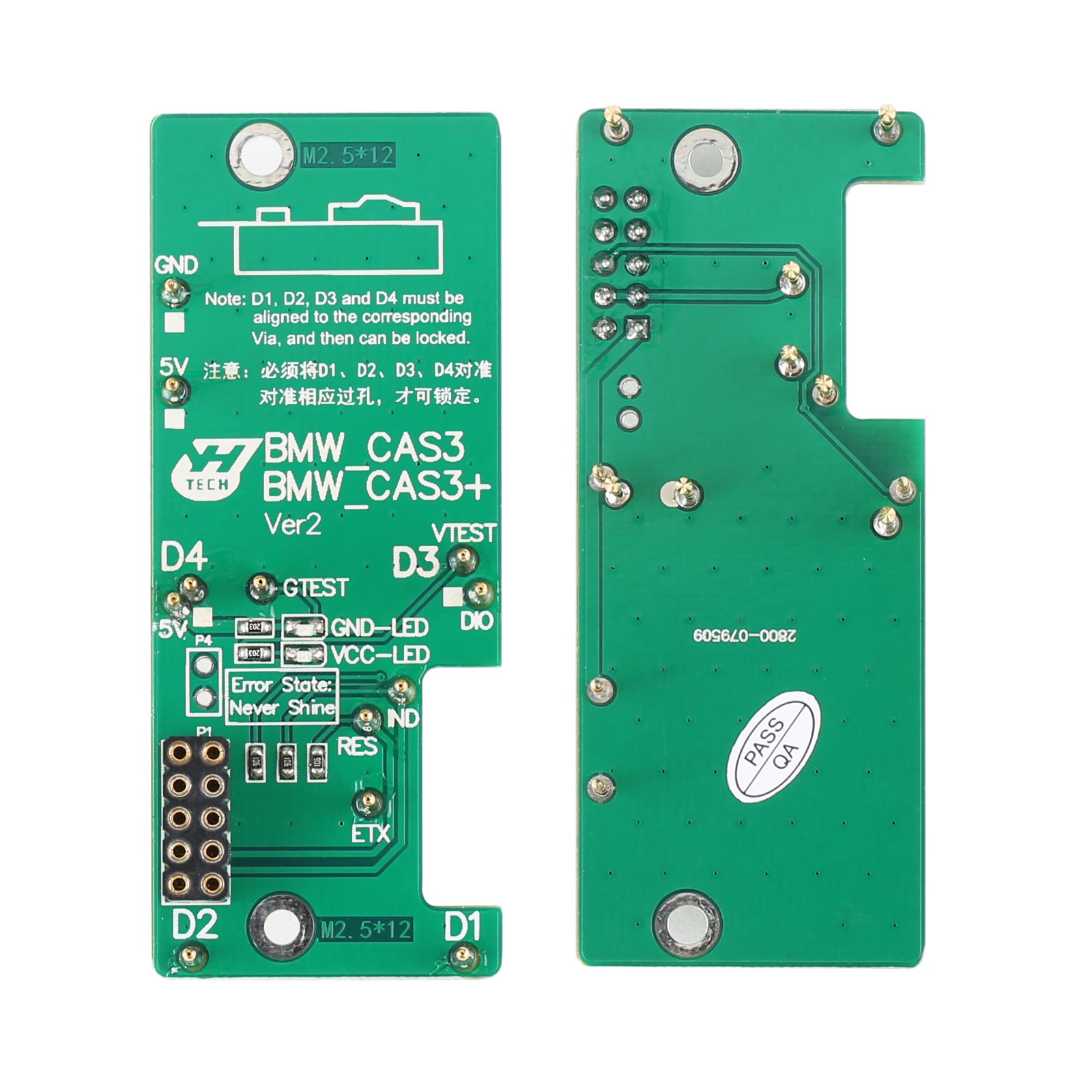

3	BMW-CAS3 Interface board		Applicable to connect CAS3/CAS3+ testpoints. Used with BDM01 adapter.	1

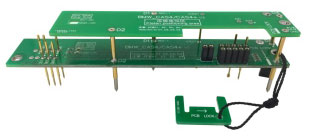

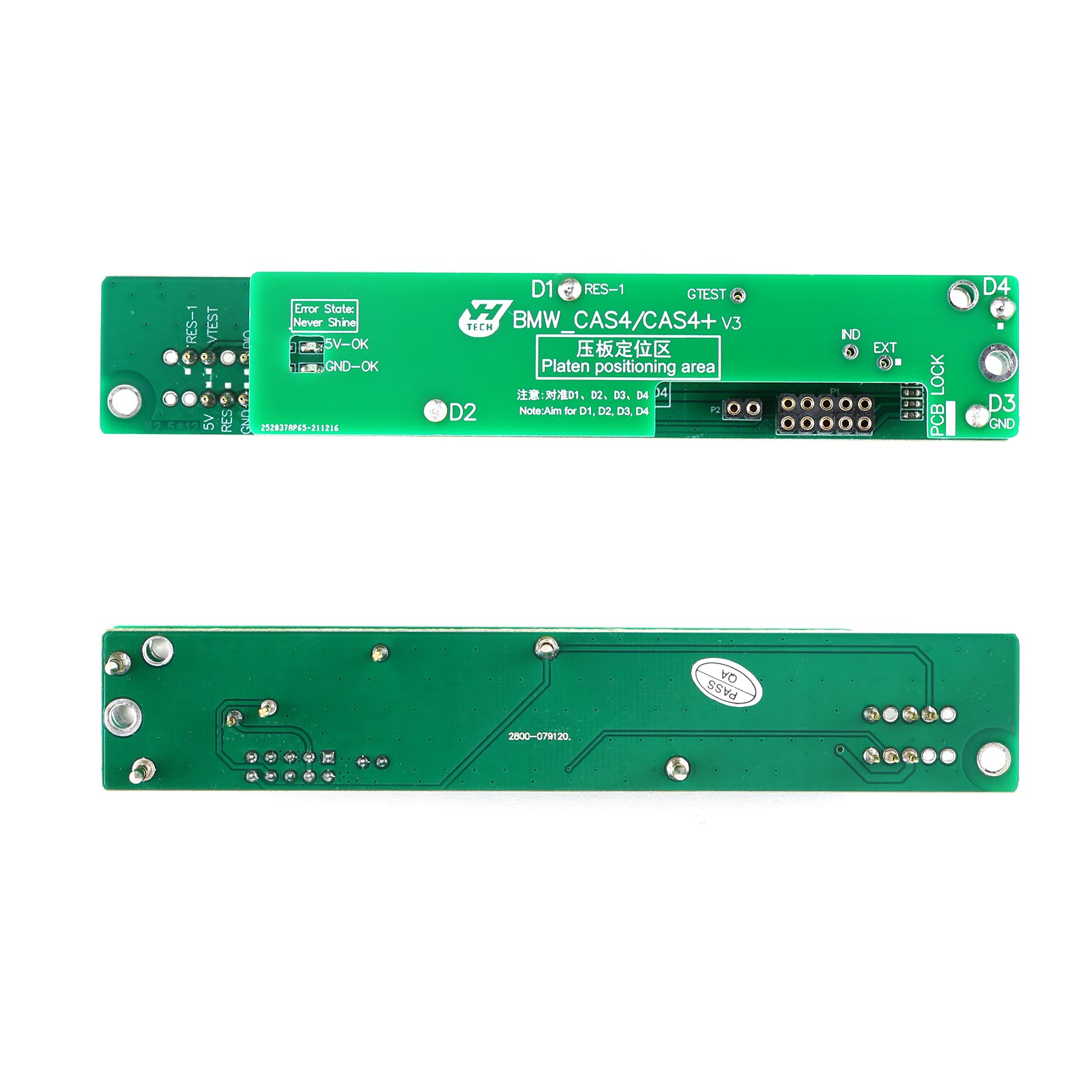

4	BMW-CAS4 Interface board		Applicable to connect CAS4/CAS4+ testpoints. Used with BDM01 adapter.	1
5	CAS3 Copper pillar Package (M2.5*12+6mm)		Applicable to fix BMW-CAS3 interface board.	6
6	CAS4 Copper pillar Package (M2.5*12+6mm)		Applicable to fix BMW-CAS4 interface board.	6
