ACDP-2 VW/Audi BCM2/MQB Package
$1,050.00 & Free Shipping
Support VW the 4th/4.5th generation and MQB 5A ，Audi 5th BCM2 add keys /all keys lost and mileage correction.
200 in stock
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description

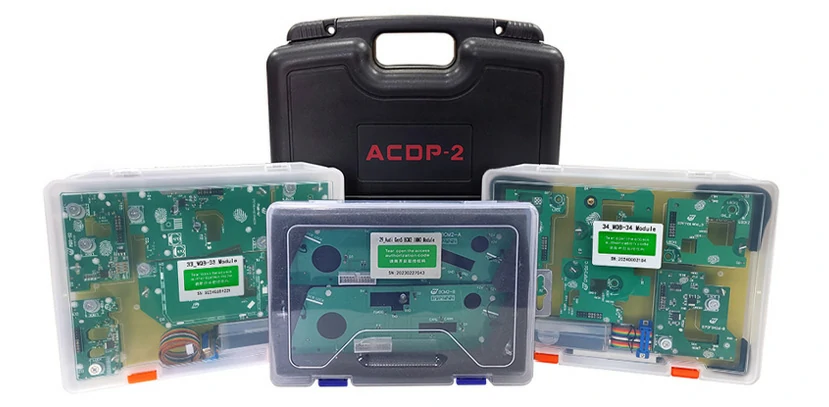

Package included:
★ ACDP-2 Programming module
★ Module 29 Audi Gen5 BCM2 IMMO Module
★ Module 33 MQB-33
★ Module 34 MQB-34
Functions:
1: Support adding key and all-key-lost for 2013-2018 Audi A4/A5/Q5 models. The BCM2 types are 0711,0650,0641, and so on.
2：Support adding key and all-key-lost（the sync data needs to be obtained from a third party） for 2013-2019 Audi A6/A7/A8 and other models. The BCM2 types are 0824,0825,0827, and so on.
3：Support IMMO and mileage correction for Volkswagen 4,generation 4.5 generation, MQB48-5A instrument with D70F3524 (A2C00889000)/ D70F3525 (A2C81589600)/D70F3526 (A2C81589700/A2C99606600)/D70F3529/ D70F3532 (A2C81589500/A2C81589501)/D70F3524 (A2C00889000)/ D70F3535 (A2C81589200)/D70F3536/D70F3537 (A2C81589300/ A2C81589800) chip model.
4：Support IMMO and mileage correction for the 4th generation instrument with D70F3423 +95320 chip model.
5：Support IMMO and mileage correction for D70F3426 +95128 chip model MQB 5A instrument.
6：Support IMMO and mileage correction for RH850 series R7F701401,R7F701402, R7F701407 chip model 5A instrument.
7：Support mileage correction for RH850 series R7F701401,R7F701402,R7F701404, R7F701405,R7F701406,R7F701407 chip model 5C instrument.
Configuration List：
ACDP-2 Configuration List (ACDP-2 Programming Module)
| Item NO | Adapters/Parts | Pictures | Adapters/Parts functions | Quantity |
| 1 | ACDP-2 Programmer |  |
1 | |
| 2 | Puncture Socket（With one more plastic part） |  |
Applicable to read and write 8-pin EEPROM data without removing/soldering. Used with 8P cable and 20P cable. | 1 |
| 3 | BAV-KEY adapter |  |
Applicable to identify BMW keys, data writing and matching. | 1 |
| 4 | P8P Cable |  |
Applicable to read and write 8-pin EEPROM data via cable connecting. | 1 |
| 5 | 8P Cable |  |
Applicable to connect the 8-PIN interface board of each module. | 1 |
| 6 | 20P Cable |  |
Applicable to connect the ACDP2 host to 20 pin interface board. | 1 |
| 7 | 20P to 8P cable |  |
Applicable to connect the ACDP2 host to 20 pin and 8 pin interface board. | 1 |
| 8 | Android cable |  |
Applicable to connect the ACDP2 host and Android phone. | 1 |
| 9 | IOS cable |  |
Applicable to connect the ACDP2 host and IOS phone. | 1 |
| 10 | PC cable |  |
Applicable to connect the ACDP2 host and PC. | 1 |
| 11 | OBD cable |  |
Applicable to connect the ACDP2 host and vehicle OBD. | 1 |
| 12 | 14V Switch Power Supply |  |
Power the ACDP-2 host. | 1 |
| 13 | OBP2 Switch Power Supply |  |
Applicable to reading 8-pin chip data with or without soldering | 1 |
| 14 | Test Points cleaning probes |  |
Applicable to clean test point three anti-paint. | 1 |
| 15 | Double-head line |  |
Applicable to point-to-point connections. | 1 |
ACDP Configuration List (Module 29 Audi Gen5 BCM2 IMMO Module)▼
| Item NO | Adapters/Parts | Pictures | Adapters/Parts functions | Quantity |

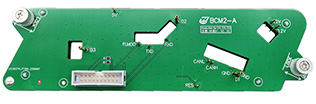

| 1 | BCM2-A Interface board |  |
Applicable to connect audi A4 / A5 / Q5 and A6 / A7/A8 BCM2 module (0510/0521/0551/0560/0572/0582) | 1 |

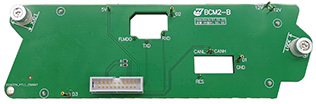

| 2 | BCM2-B Interface board |  |
Applicable to connect audi A6 /A7/A8 BCM2 module (0824/0825/0827) | 1 |
ACDP Configuration List (Module 33 MQB-33)▼
| Item NO | Adapters/Parts | Pictures | Adapters/Parts functions | Quantity |
| 1 | MQB-74 Interface board |  |
Applicable to connect D70F3524/D70F3525/D70F3526 chip instrument | 1 |
| 2 | MQB-75 Interface board |  |
Applicable to connect D70F3525/D70F3526 chip instrument | 1 |
| 3 | MQB-77 Interface board |  |
Applicable to connect D70F3525 chip instrument | 1 |
| 4 | MQB-78 Interface board |  |
Applicable to connect D70F3525 chip instrument | 1 |
| 5 | MQB-79 Interface board |  |
Applicable to connect D70F3526 chip instrument | 1 |
| 6 | MQB-80 Interface board |  |
Applicable to connect D70F3526 chip instrument | 1 |
| 7 | MQB-81 Interface board |  |
Applicable to connect D70F3525/D70F3526 chip instrument | 1 |
| 8 | MQB-82 Interface board |  |
Applicable to connect D70F3529 chip instrument | 1 |
| 9 | MQB-83 Interface board |  |
Applicable to connect D70F3532 chip instrument | 1 |
| 10 | MQB-84 Interface board |  |
Applicable to connect D70F3532 chip instrument | 1 |
| 11 | MQB-85 Interface board |  |
Applicable to connect D70F3537 chip instrument | 1 |
| 12 | MQB-86 Interface board |  |
Applicable to connect D70F3535/D70F3536/D70F3537 chip instrument | 1 |
| 13 | MQB-87 Interface board |  |
Applicable to connect D70F3524 chip instrument | 1 |
| 14 | PCF-KEY adapter |  |
Applicable to generate MQB dealer keys | 1 |
| 15 | MQB-V2 adapter |  |
Applicable to decrypt MQB instrument | 1 |
| 16 | 20PIN cable |  |
Applicable to connect ACDP host and MQB adapter | 1 |
| 17 | screw |  |
Applicable to fix interface boards | 5 |
ACDP Configuration List (Module 34 MQB-34)▼
| Item NO | Adapters/Parts | Pictures | Adapters/Parts functions | Quantity |
| 1 | R7F701401 Interface board |  |
Applicable to connect R7F701401 chip instrument | 1 |
| 2 | R7F701402 Interface board |  |
Applicable to connect R7F701402 chip instrument | 1 |
| 3 | R7F701404 Interface board |  |
Applicable to connect R7F701404 chip instrument | 1 |
| 4 | R7F701406_1 Interface board |  |
Applicable to connect R7F701406 chip instrument | 1 |
| 5 | R7F701406_2 Interface board |  |
Applicable to connect R7F701406 chip instrument | 1 |
| 6 | R7F701407 Interface board |  |
Applicable to connect R7F701407 chip instrument | 1 |
| 7 | D70F3423 Interface board |  |
Applicable to connect D70F3423+95320 chip instrument | 1 |
| 8 | D70F3426-A Interface board |  |
Applicable to connect D70F3426+95128 chip instrument | 1 |
| 9 | D70F3426-B Interface board |  |
Applicable to connect D70F3426+95128 chip instrument | 1 |
| 10 | D70F3426-C Interface board |  |
Applicable to connect D70F3426+95128 chip instrument | 1 |
| 11 | PCF-KEY adapter | |
Applicable to generate MQB dealer keys | 1 |
| 12 | MQB-V2 adapter | |
Applicable to decrypt MQB instrument | 1 |
| 13 | 20PIN cable | |
Applicable to connect ACDP host and MQB adapter | 1 |
| 14 | screw |  |
Applicable to fix interface boards | 6 |
