ACDP-2 JLR IMMO Package

Description

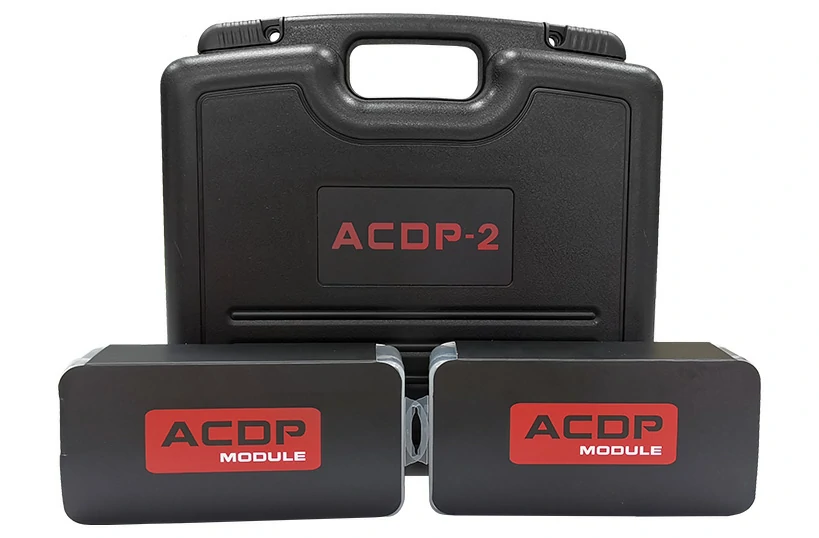

Package included:

★ ACDP-2 Programming module

★ Module 9 Jaguar/Land Rover KVM module

★ Module 24 New JLR（2018+）IMMO module

Functions:

1: Supports the new JLR (2018+) OBD duplicate key (JPLA-14C104-AF).

2: Support the new JLR (2018+) program new key by replacing RFA blank chip or RFA module.

3：Support Jaguar&Land rover ICP Add key/All-key-lost (2015-2019).

4: Support Jaguar&Land rover OBD Duplicate key/All-key-lost 2011-2019).

5：Support Jaguar&Land rove OBD Add key/All-key-lost (2011-2015).

Configuration List：

ACDP-2 Configuration List (ACDP-2 Programming Module)

Item NO	Adapters/Parts	Pictures	Adapters/Parts functions	Quantity
1	ACDP-2 Programmer			1
2	Puncture Socket（With one more plastic part）		Applicable to read and write 8-pin EEPROM data without removing/soldering. Used with 8P cable and 20P cable.	1
3	BAV-KEY adapter		Applicable to identify BMW keys, data writing and matching.	1
4	P8P Cable		Applicable to read and write 8-pin EEPROM data via cable connecting.	1
5	8P Cable		Applicable to connect the 8-PIN interface board of each module.	1
6	20P Cable		Applicable to connect the ACDP2 host to 20 pin interface board.	1
7	20P to 8P cable		Applicable to connect the ACDP2 host to 20 pin and 8 pin interface board.	1
8	Android cable		Applicable to connect the ACDP2 host and Android phone.	1
9	IOS cable		Applicable to connect the ACDP2 host and IOS phone.	1
10	PC cable		Applicable to connect the ACDP2 host and PC.	1
11	OBD cable		Applicable to connect the ACDP2 host and vehicle OBD.	1
12	14V Switch Power Supply		Power the ACDP-2 host.	1
13	OBP2 Switch Power Supply		Applicable to reading 8-pin chip data with or without soldering	1
14	Test Points cleaning probes		Applicable to clean test point three anti-paint.	1
15	Double-head line		Applicable to point-to-point connections.	1

ACDP Configuration List (Module 9 Jaguar/Land Rover KVM Module) ▼

Item NO	Adapters/Parts	Pictures	Adapters/Parts functions	Quantity
1	Jaguar/Land Rover KVM module Interface board		Applicable to connect and fix Jaguar/Land Rover KVM module test point.	1
2	Jaguar/Land Rover KVM module copper pillar package		Applicable to fix Jaguar/Land Rover KVM module interface boards	3
3	Jaguar/Land Rover KVM module test points cleaning probes		Applicable to clean KVM module test points.	2
4	Land Rover key refresh interface board		Applicable to connect Jaguar/Land Rover key test point	1
5	Jaguar/Land Rover key refresh Copper pillar package		Applicable to fix Jaguar/Land Rover key test point	2

ACDP Configuration List (Module 24 New JLR (2018+) IMMO module)▼

Item NO	Adapters/Parts	Pictures	Adapters/Parts functions	Quantity
1	JLR RFA Port interface board		Applicable to connect JLR RFA module plug.	1
2	JLR RFA Clip interface board		Applicable to connect JLR RFA module chip	1
