MB/BMW CAN filter

Description

Highlights:

Latest Benz/BMW Universal CAN Filter
High Reliability:  18 in 1 car CAN filter has undergone extensive quality and safety testing to ensure higher working efficiency and strong reliability.

Multifunction: CAN Filter is designed to support old mileage data blocking on Mercedes-Benz vehicles.  It is designed to prevent regeneration of the old mileage state in vehicle dashboard (odometer). CAN filter doesn’t interrupt any vehicle electronic system, there will be no errors or DTC’s after install.
Easy to Operate: You only need to connect the device according to the instructions to perform comprehensive filtering, which saves the complicated installation process.

Applicable vehicle list:

1. For Benz 18 types chassis model: S(222), S(221), C(205), C(204), V(W447), E(W212), E(W207), A(W176), G(W463), ML(W166), SL(R231), GL(X166), B(W246), CLS(W218), SLK(R172), SLS(W197), CLA(W117), GLK(X204)

2.BMW Model:

BMW:CAS4/FEM Fxx

BMW 1 series F2X, 3 series F3X, BMW X5 etc., FEM mileage adjustment( no need to remove FEM, connect directly to instrument panel);

BMW 5 series F10, 7 series F01/02 etc., CAS4 Fxx chassis.( F01, F02, F07, F18, F10, F20, F25, X3 etc., applicable for 9S12 XEP series 5M48H/1N35H).

This flter is universal for multiple car models, small and convenient, easy operate, with stable performance and reliability.

NOTICE:

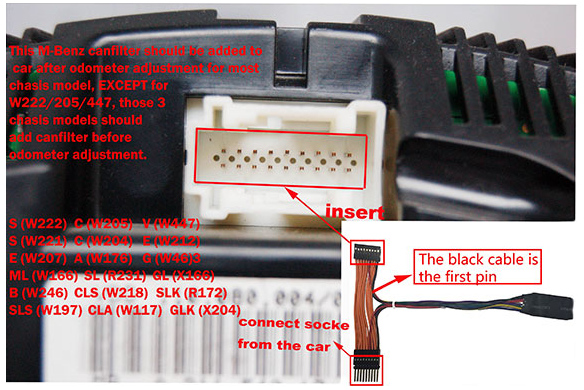

1. New style: 222/205/217 Old style: 166/212/463 CHECK the car modele correctly before adjust.
2. Old style W166 short circuit to GND New style W222 short circuit to GND Black wire connect to plug 1

YH Benz /BMW Universal filter .– Diagram for BMW

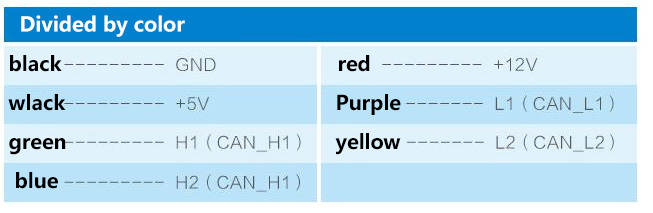

Below is wiring illustration:

NOTlCE! Please connect the 2 BMW dot together(short circuit) BEFOR connect to car!

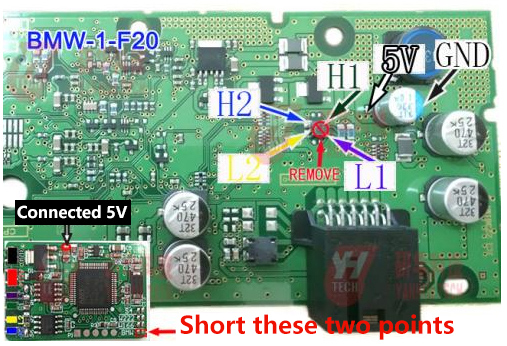

1.Below is the diagram for BMW 1 series F20 instrument ▼

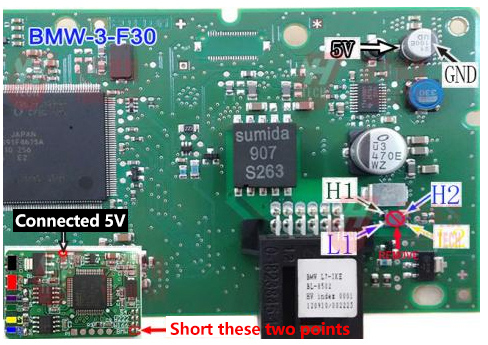

2.Below is the BMW 3 series F30 instrument ▼

3.Below is the BMW 3 GT series F30 instrument ▼

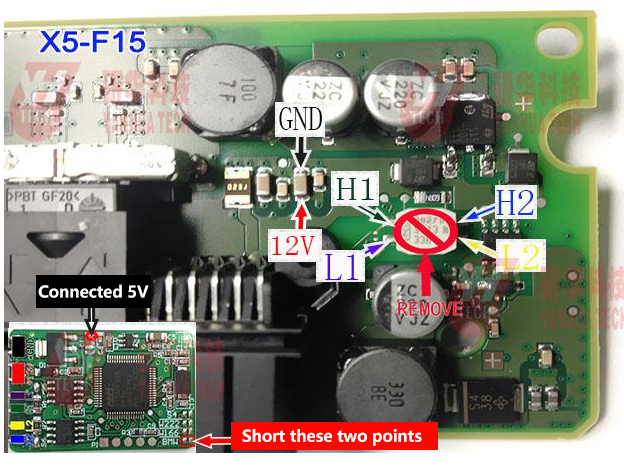

4.Below is the diagram for American Standard BMW X5 F15 instrument ▼

5.Below is the diagram for USA Strandard BMW X5 F15 instrument ▼

6.Below is the diagram for BMW FEM ▼

7.Below is the diagram for BMW CAS4(1L15Y/5M48H/1N35H) ▼

8.Below is the diagram for BMW X3 F25 instrument ▼
